| Panel | Screen Size | 65″ |
| Backlight Type | D-LED | |
| Resolution | 3840*2160 | |
| Brightness | 350cd/m² | |
| Screen Contrast Ration | 4000:1 | |
| Response Time | 6ms | |
| Pixel Pitch | 0.124×0.372 mm (H×V) | |
| Frame Frequency | 60 Hz | |
| Viewing Angle | 178°(H) / 178°(V) | |
| Color Saturation (x% NTSC) | 72 % | |
| Active Area | 1430mmx804mm | |
| Color | 1.07B(8bit) | |
| Life Span | 30,000 hrs | |
| Solution | Chipset | MSD848（8386） |
|
System Attributes |
System Version | Android 8.0 |
| CPU | Dual-core A73 and dual-core A53 1.5GHZ
|
|
| GPU | G51MP
|
|
| Internal Cache Capacity (RAM) | 2/3 GB DDR4 | |
| Internal Storage Capacity | 16/32 GB Standard | |
|
Power parameters
|
Input Voltage | 100 V ~ 240 V/AC, 50/60 Hz |
| Maximum power (without OPS) | ≦260W | |
| OPS Power Supply | 19V(DC)/5A | |
| Standby Power | <0.5W | |
| Power (AC) Input | *1 | |
| Function
|
Accompanying Audio Power | 8Ω/10W*2 |
| Power Switch | *1 | |
| Ethernet*
|
1* RJ45 standard socket
|
|
| VGA IN
|
1*DB15 type, 1* external standard socket
|
|
| AV IN
|
1* small socket
|
|
| MIC IN
|
1* small socket
|
|
| Earphone
|
1* earphone standard socket
|
|
| SPDIF
|
1x coaxial socket
|
|
| WIFI
|
2*5G built-in module
|
|
| HDMI IN
|
4* HDMI standard socket
|
|
| RS232 UART
|
1x DB9 standard block
|
|
| Media USB (multi-media)
|
4* USB 2.0 standard socket
|
|
| SD-card
|
1* little socket
|
|
| TOUCH USB(touch)
|
1* Standard Type USB2.0 B port,1* Standard Type
USB2.0 A port
|
|
| Environmental factors | Working Temperature | 0℃ ~ 40℃ |
| storage temperature | -10℃ ~ 60℃ | |
| Working Humidity | 20% ~ 80% | |
| Storage Humidity | 10% ~ 60% | |
| Maximum Use Time (hours*day) | 18Hours*7days | |
|
structure |
Net Weight | 38Kg±1.5Kg |
| Gross Weight | 45Kg±1.5Kg(Heavy Duty Carton) | |
| Bare Size（Length*width*thickness） | 1488.4mm*892mm*91.55mm | |
| Package size (L*W*H) | 1600mm*1030mm*200mm (Heavy Duty Cartons) | |

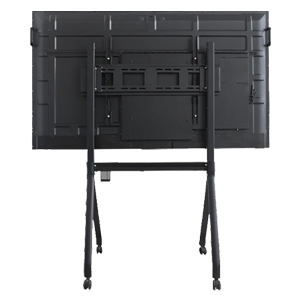

| VESA Hole Position | 4-M8 screw hole 500mmx400mm | |
| Housing Material（Frame / Back shell） | Aluminium profiles/sheet metal | |
| Housing Color（Frame / Back shell） | Black (Up and Down Silver/All Silver)
Optional |
|
| Language | OSD Menu | Simplified Chinese/Traditional Chinese/English/Korean |
| Accessories
Accessory |
Wifi Antennas | *4 |
| Stylus Pen | *1 | |
| Remote Control | *1 | |
| User Manual | *1 | |
| Certificate of Conformity/Warranty Card | *1 | |
| 1.5 Meter Power Cord | *1 | |
| Wall Mount Bracket Hanger (Screws Included) | *1（Set） | |
| Screen Projector | *1（Optional） | |
| Smart Pen | *1（Optional） | |
| Touch Parameters
|
Touch Specifications | Infrared Touch Frame |
| Glass specifications | 4mm Anti-glare Tempered Glass | |
| Response Speed | ≤6ms | |
| Touch Accuracy | 90% center area accuracy ±1mm, 10% edge area accuracy ±3mm | |
| Touch Diameter | ≥3mm | |
| Input Methods | Finger or Specialized Pen | |
| Theoretical number of hits | unlimited number of times | |
| Interface Type | USB 2.0 Full Speed | |
| Working Voltage | 4.75～5.25V | |
| Power Consumption | ≤2 W | |
