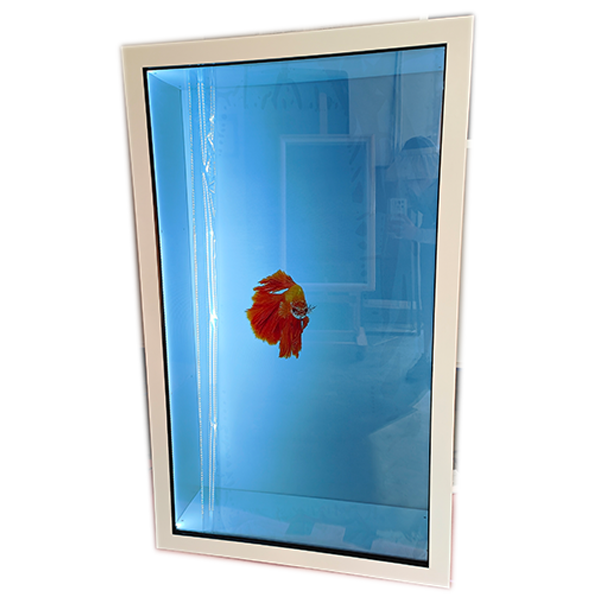

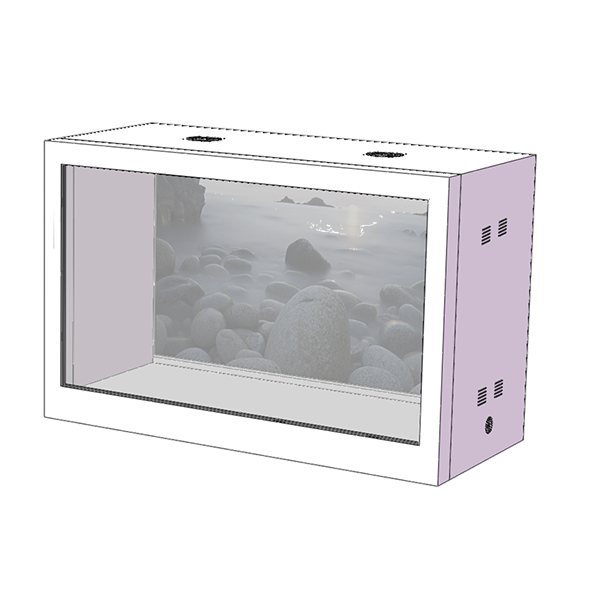

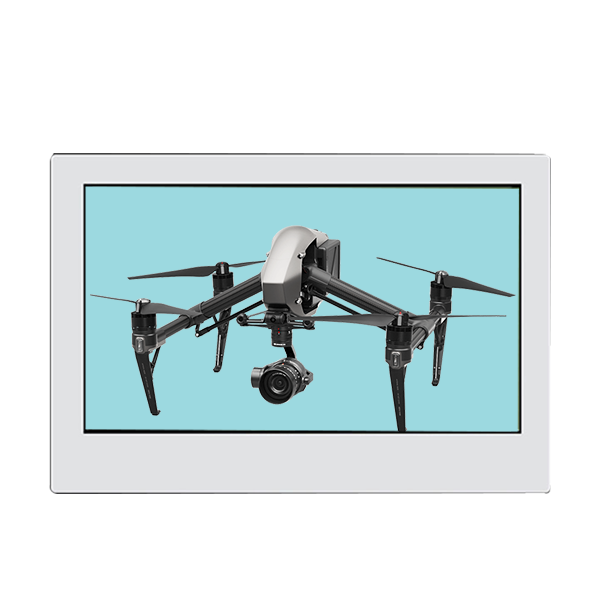

Transparent LCD Cabinet

  1. Eye protection optical design: protect your eyes from strong blue light, improve visual fatigue and sleep quality.
  2. Infrared touch technology: smooth writing.
  3. Sheet metal shell, surface piano baking paint treatment, iron shell back cover, active heat dissipation;
  4. 5mm physical toughened vandal-proof high-transparency glass; strengthen the visual effect and enhance the touch experience;
  5. high-speed 10-point touch writing experience, better roundness, faster writing speed;
  6. built-in Android / computer system (optional), wireless WIFI, easy to expand;
  7. Speaker out of the sound side, to prevent the sound effect deterioration due to the embedded environment;
  8. the use of high brightness light bar, hidden design, constant current controllable light source, environmental protection and energy saving;
Screen size 32″ -TFT 43″ -TFT 49″ -TFT 55″ -TFT
Panel Brand A grade /BOE/Innolux
Display area(mm) 706 (H)*399(V) 947 (H)*554(V) 1077 (H)*611(V) 1218 (H)*687(V)
Resolution 1920*1080
Viewing angle 89/89(H),89/89(V)
Contrast Ratio 1200:1
Brightness ≥350 nits(Typ.)
Response time ≤6ms
Touch mode Non/PCAP Touch
Color 16.7 M color
Aspect Ratio  16:9
Life span 50000 hours
Media players Android System/Windows system/Plug&Play System/Monitor
Audio Decoder MP3,AAC,WVA,WMA
Image Decoder JPEG,PNG,GIF,BMP
OSD Language CN/EN Multilingual
Speaker 2X10W
Installation Floor stand/Wall mount
Operating Temperature 0–50℃
Humidity 10~85%
Storage Temperature -10℃~ 60℃
Power Input AC100-240V~(+/- 10 %) 50/60Hz
Power consumption 40 W 70W 115W 230W
Material Aluminum alloy + Metal Plate
Color White(Bespoke option)
Accessory Power cord,antenna
